Medium Voltage Cables BS/IEC/VDE/ICEA

MV cables engineered to BS, IEC, VDE, and ICEA standards.

Certified medium voltage power cables for global projects.

Reliable MV solutions for utility, industrial, and energy sectors.

Tested and trusted – MV cables with international compliance.

High-performance XLPE insulated MV cables, ready to ship.

Application

Medium Voltage (MV) cables designed to BS, IEC, VDE, and ICEA standards are engineered for reliable power transmission in systems rated from 3.6/6 kV up to 26/35 kV. These cables typically feature copper or aluminum conductors, XLPE (cross-linked polyethylene) insulation, metallic screening, and robust outer sheaths made of PVC, PE, or LSZH materials.

Manufactured in compliance with international standards such as BS 6622, IEC 60502-2, VDE 0276-620, and ICEA S-93-639/NEMA WC 74, these cables ensure excellent electrical performance, thermal endurance, and mechanical protection. The XLPE insulation enables continuous operation at 90°C and short-circuit temperature up to 250°C.

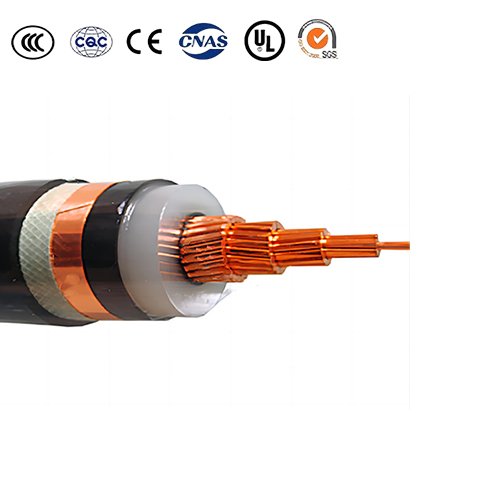

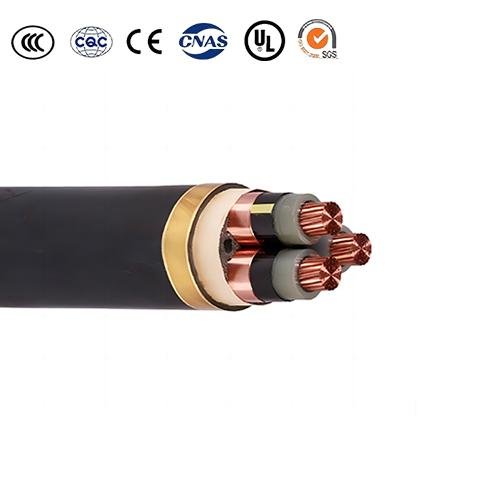

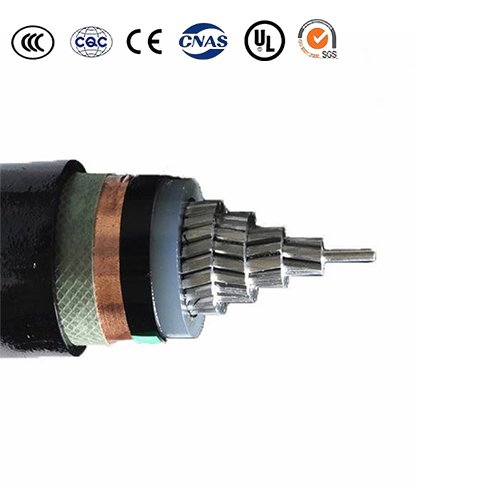

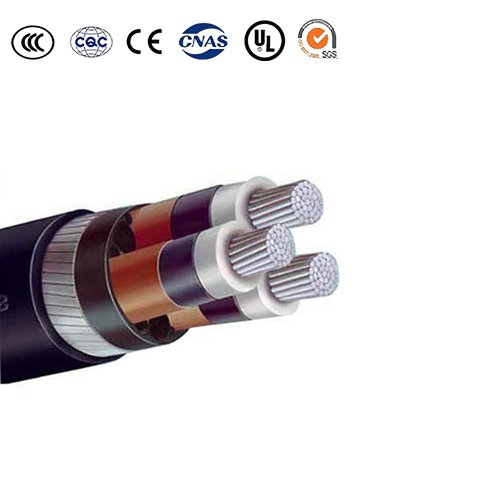

MV cables are available in single-core or multi-core constructions, with optional armor or water-blocking layers for enhanced protection in underground, outdoor, or industrial installations. Applications include utility distribution grids, substations, renewable energy plants, mining operations, and critical infrastructure.

With high dielectric strength, chemical resistance, and compliance with flame-retardant and smoke emission requirements, medium voltage cables built to BS/IEC/VDE/ICEA standards offer long service life and high system reliability for both public and private power networks.

Specifications

Aspect	Details & Applications
Voltage Range	Medium Voltage – typically 3.6/6 kV up to 19/33 kV (some up to 35 kV)
Conductor Material	Annealed copper or aluminum, solid or stranded, per IEC 60228 / ASTM B8
Insulation Material	XLPE (Cross-linked Polyethylene) or EPR (Ethylene Propylene Rubber)
Metallic Screen	Copper tape, wire screen, or concentric conductor for shielding and fault current return
Armour Options	Steel Wire Armour (SWA), Aluminum Wire Armour (AWA), or none (unarmoured)
Sheath Material	PVC or LSZH (Low Smoke Zero Halogen), optionally UV-, oil- and flame-resistant
Temperature Rating	90°C continuous; up to 250°C short-circuit (max 5 seconds)
Standards	• IEC 60502-2 – International• BS 6622 / BS 7835 – UK Standard• VDE 0276 – German Standard• ICEA S-93-639 (NEMA WC74) – North American
Typical Constructions	Single-core or multi-core, screened, optionally armoured, suitable for indoor/outdoor/direct burial
Applications	– Utility and industrial power distribution networks- Underground ducts, cable trays, and direct burial- Used in substations, factories, infrastructure projects

Parameter

BS 🇬🇧 UK and 🇮🇳 India, 🇵🇰 Pakistan, 🇳🇬 Nigeria, 🇿🇦 South Africa, 🇲🇾 Malaysia, 🇸🇬 Singapore, etc.

NOMINAL CROSS- SECTION OF CABLES	TOTAL CROSS SECTION					MAX.DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
NOMINAL CROSS- SECTION OF CABLES	3.8/6.6KV (UM=7.2KV)	6.35/11KV (UM=12KV)	8.7/15KV (UM=17.5KV)	12.7/22KV (UM=24KV)	19/33KV (UM=36KV)	MAX.DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
MM2	MM2					Ω
70	16	16	16	16	16	1.19
95	16	16	16	16	16	1.19
120	16	16	16	16	16	1.19
150	25	25	25	25	25	0.759
185	25	25	25	25	25	0.759
240	25	25	25	25	25	0.759
300	25	25	25	25	25	0.759
400	35	35	35	35	35	0.271
500	35	35	35	35	35	0.271
630	35	35	35	35	35	0.271

IEC 🌍 Global standard, especially suitable for: 🇪🇺 Europe (non-German-speaking areas), 🌍 Africa, 🇦🇪 Middle East, 🇹🇭 Southeast Asia, 🇧🇷 Latin American projects

NOM.CROSS SECTION AREA OF CONDUCTOR	TOTAL CROSS SECTION					MAX.DC RESISTANCE AT 20℃
NOM.CROSS SECTION AREA OF CONDUCTOR	3.6/6KV (UM=7.2KV)	6/10KV (UM=12KV)	8.7/15KV (UM=17.5KV)	12/20KV (UM=24KV)	18/30KV (UM=36KV)	MAX.DC RESISTANCE AT 20℃
MM2	MM	MM	MM	MM	MM	Ω
10	10	10	10	10	10	1.075
16	16	16	16	16	16	1.075
25	16	16	16	16	16	1.075
35	16	16	16	16	16	1.075
50	16	16	16	16	16	1.075
70	16	16	16	16	16	1.075
95	16	16	16	16	16	1.075
120	16	16	16	16	16	1.075
150	25	25	25	25	25	0.688
185	25	25	25	25	25	0.688
240	25	25	25	25	25	0.688
300	25	25	25	25	25	0.688
400	35	35	35	35	35	0.491
500	35	35	35	35	35	0.491
630	35	35	35	35	35	0.491
800	50	50	50	50	50	0.344

VDE 🇩🇪 Germany, 🇦🇹 Austria, 🇨🇭 Switzerland, 🇳🇱 Netherlands, 🇵🇱 Poland, 🇨🇿 Czech Republic and other German-speaking or Central European countries German-speaking areas

NOMINAL CROSS-SECTION OF CABLESMM	TOTAL CROSS SECTION					MAX.DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
NOMINAL CROSS-SECTION OF CABLESMM	3.6/6KV (UM=7.2KV)	6/10KV (UM=12KV)	8.7/15KV (UM=17.5KV)	12/20KV (UM=24KV)	18/30KV (UM=36KV)	MAX.DC RESISTANCE OF COPPER WIRE SCREEN AT 20℃
MM2	MM2					Ω
70	16	16	16	16	16	1.19
95	16	16	16	16	16	1.19
120	16	16	16	16	16	1.19
150	25	25	25	25	25	0.759
185	25	25	25	25	25	0.759
240	25	25	25	25	25	0.759
300	25	25	25	25	25	0.759
400	35	35	35	35	35	0.271
500	35	35	35	35	35	0.217
630	35	35	35	35	35	0.271

ICEA 🇺🇸 The United States, 🇨🇦 Canada, 🇲🇽 Mexico, and 🇵🇪 🇨🇱 🇨🇴 and other Latin American countries. America only

5KV 100% TO ICEA STANDARD
CONDUCT OR	INSULATIO N THICKNES S (MM/MILS)	SHEATH THICKNES S (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM/LBS/KFT)				AMPACITY(AMPS)
CONDUCT OR	INSULATIO N THICKNES S (MM/MILS)	SHEATH THICKNES S (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM/LBS/KFT)				90°C IN DUCT		90°C IN AIR
			(D)		CU		AL		CU	AL	CU	AL
4 AWG	2.29/90	1.52/60	17.5	0.69	430	289	299	201	110	86	145	115
2 AWG	2.29/90	1.52/60	18.8	0.74	573	385	366	246	145	115	190	150
1 AWG	2.29/90	1.52/60	19.8	0.78	670	450	406	273	170	130	225	175
1/0 AWG	2.29/90	1.52/60	20.8	0.82	792	532	460	309	195	150	260	200
2/0 AWG	2.29/90	1.52/60	23.1	0.91	989	665	571	384	220	170	300	230
3/0 AWG	2.29/90	2.03/80	24.6	0.97	1178	792	652	438	250	195	345	270
4/0 AWG	2.29/90	2.03/80	25.9	1.02	1409	947	744	500	290	225	400	310
250 MCM	2.29/90	2.03/80	27.2	1.07	1613	1084	829	557	320	250	445	345
350 MCM	2.29/90	2.03/80	29.7	1.17	2129	1431	1031	693	385	305	550	430
500 MCM	2.29/90	2.03/80	33.5	1.32	2913	1958	1345	904	470	370	695	545
750 MCM	2.29/90	2.03/80	38.6	1.52	4187	2814	1821	1224	585	470	900	710
1000 MCM	2.29/90	2.03/80	42.4	1.67	5426	3647	2267	1524	670	545	1075	855
					5kV 133	% to ICEA S	tandard
4 AWG	2.92/115	1.52/60	18.8	0.74	464	312	335	225	120	86	110	115
2 AWG	2.92/115	1.52/60	20.1	0.79	611	411	405	272	155	115	145	150
1 AWG	2.92/115	1.52/60	21.1	0.83	711	478	448	301	180	130	170	175
1/0 AWG	2.92/115	1.52/60	23.1	0.91	884	594	552	371	210	150	200	200
2/0 AWG	2.92/115	1.52/60	24.6	0.97	1038	698	620	417	235	170	225	230
3/0 AWG	2.92/115	2.03/80	25.7	1.01	1226	824	698	469	270	195	270	270
4/0 AWG	2.92/115	2.03/80	27.2	1.07	1461	982	797	536	310	225	305	310
250 MCM	2.92/115	2.03/80	28.4	1.12	1669	1122	884	594	345	250	355	345
350 MCM	2.92/115	2.03/80	31.2	1.23	2192	1473	1094	735	415	305	430	430
500 MCM	2.92/115	2.03/80	35.1	1.38	2983	2005	1413	950	505	370	530	545
750 MCM	2.92/115	2.03/80	39.9	1.57	4261	2864	1895	1274	630	470	665	710
1000 MCM	2.92/115	2.03/80	45.2	1.78	5654	3800	2495	1677	720	545	770	855

8KV 100% TO ICEA STANDARD
CONDUCTOR	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MMIN.)		CABLE WEIGHT (KG/KM/ LBS/KFT)				AMPACITY(AMPS)
CONDUCTOR	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MMIN.)		CABLE WEIGHT (KG/KM/ LBS/KFT)				90掳C IN DUCT		90掳CIN AIR
			(D)		CU		AL		CU	AL	CU	AL
4 AWG	2.92/115	2.03/80	36.1	1.42	1775	1193	1382	929	115	89	120	95
2 AWG	2.92/115	2.03/80	39.4	1.55	2254	1515	1629	1095	150	115	165	125
1 AWG	2.92/115	2.03/80	41.7	1.64	2662	1789	1785	1200	170	135	185	145
1/0 AWG	2.92/115	2.80/110	45.2	1.78	3211	2158	2126	1429	195	150	215	170
2/0 AWG	2.92/115	2.80/110	47.8	1.88	3709	2493	2447	1645	220	170	245	190
3/0 AWG	2.92/115	2.80/110	50.5	1.99	4376	2941	2729	1834	250	195	285	220
4/0 AWG	2.92/115	2.80/110	53.6	2.11	5137	3453	3074	2066	285	220	325	255
250 MCM	2.92/115	2.80/110	56.4	2.22	5807	3903	3382	2273	310	245	360	280
350 MCM	2.92/115	2.80/110	62	2.44	7546	5072	4161	2797	375	295	435	345
500 MCM	2.92/115	3.56/140	70.1	2.76	10175	6839	5349	3595	450	355	535	425
750 MCM	2.92/115	3.56/140	81.8	3.22	14624	9829	7372	4955	545	440	670	540
1000 MCM	2.92/115	3.56/140	90.2	3.55	18604	12504	9080	6103	615	510	770	635
8kV 133% to ICEA Standard
2 AWG	3.56/140	2.03/80	42.2	1.66	2415	1623	1791	1204	150	115	165	125
1 AWG	3.56/140	2.80/110	45.7	1.8	2979	2002	2102	1413	170	135	185	145
1/0 AWG	3.56/140	2.80/110	48	1.89	3395	2282	2311	1553	195	150	215	170
2/0 AWG	3.56/140	2.80/110	50.5	1.99	3901	2622	2639	1774	220	170	245	190
3/0 AWG	3.56/140	2.80/110	53.1	2.09	4576	3076	2929	1969	250	195	285	220
4/0 AWG	3.56/140	2.80/110	56.4	2.22	5347	3594	3285	2208	285	220	325	255
250 MCM	3.56/140	2.80/110	59.2	2.33	6027	4051	3602	2421	310	245	360	280
350 MCM	3.56/140	2.80/110	64.8	2.55	7784	5232	4399	2957	375	295	435	345
500 MCM	3.56/140	3.56/140	74.4	2.93	10682	7180	5856	3936	450	355	535	425
750 MCM	3.56/140	3.56/140	84.6	3.33	14929	10034	7679	5161	545	440	670	540
1000 MCM	3.56/140	3.56/140	93	3.66	18937	12728	9413	6327	615	510	770	635

5KV 100% TO ICEA STANDARD
CONDUCT OR	INSULATIO N THICKNES S(MM/	SHEATH THICKNES S (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM/ LBS/KFT)				AMPACITY(AMPS)
CONDUCT OR	INSULATIO N THICKNES S(MM/	SHEATH THICKNES S (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM/ LBS/KFT)				90掳CIN DUCT		90掳C IN AIR
			(D)		CU		AL		CU	AL	CU	AL
2 AWG	4.45/175	2.80/110	47.5	1.87	2809	1888	2186	1469	150	115	165	125
1 AWG	4.45/175	2.80/110	49.8	1.96	3242	2179	2366	1590	170	135	185	145
1/0 AWG	4.45/175	2.80/110	51.8	2.04	3669	2466	2583	1736	195	150	215	170
2/0 AWG	4.45/175	2.80/110	54.4	2.14	4185	2813	2924	1965	220	170	245	190
3/0 AWG	4.45/175	2.80/110	56.9	2.24	4873	3275	3226	2168	250	195	285	220
4/0 AWG	4.45/175	2.80/110	60.2	2.37	5658	3803	3595	2416	285	220	325	255
250 MCM	4.45/175	2.80/110	63	2.48	6350	4268	3925	2638	310	245	360	280
350 MCM	4.45/175	3.56/140	69.6	2.74	8226	5529	4841	3254	375	295	435	345
500 MCM	4.45/175	3.56/140	78.2	3.08	11080	7447	6253	4203	450	355	535	425
750 MCM	4.45/175	3.56/140	88.4	3.48	15374	10333	8122	5459	545	440	670	540
1000 MCM	4.45/175	3.56/140	97.5	3.84	19547	13138	10023	6737	615	510	770	635
15kV 133% to ICEA Standard
2 AWG	5.59/220	2.80/110	52.3	2.06	3160	2124	2537	1705	150	115	165	125
1 AWG	5.59/220	2.80/110	54.6	2.15	3606	2424	2729	1834	170	135	185	145
1/0 AWG	5.59/220	2.80/110	56.9	2.24	4045	2719	2959	1989	195	150	215	170
2/0 AWG	5.59/220	2.80/110	59.2	2.33	4575	3075	3313	2227	220	170	245	190
3/0 AWG	5.59/220	2.80/110	62	2.44	5279	3548	3632	2441	250	195	285	220
4/0 AWG	5.59/220	2.80/110	65	2.56	6082	4088	4019	2701	285	220	325	255
250 MCM	5.59/220	2.80/110	68.8	2.71	6884	4627	4459	2997	310	245	360	280
350 MCM	5.59/220	3.56/140	75.9	2.99	8954	6018	5569	3743	375	295	435	345
500 MCM	5.59/220	3.56/140	83.1	3.27	11617	7808	6790	4564	450	355	535	425
750 MCM	5.59/220	3.56/140	93.5	3.68	15969	10733	8717	5859	545	440	670	540
1000 MCM	5.59/220	3.56/140	102.6	4.04	20196	13574	10672	7173	615	510	770	635

25KV 100% TO ICEA STANDARD
CONDUCTO R	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM/ LBS/KFT)				AMPACITY(AMPS)
CONDUCTO R	INSULATION THICKNESS (MM/MILS)	SHEATH THICKNESS (MM/MILS)	OVERALL DIAMETER (MM/IN.)		CABLE WEIGHT (KG/KM/ LBS/KFT)				90掳C IN DUCT		90掳C IN AIR
			(D)		CU		AL		CU	AL	CU	AL
1 AWG	6.60/260	2.80/110	57.9	2.28	4038	2714	3248	2183	185	145	210	165
1/0 AWG	6.60/260	2.80/110	60.2	2.37	4510	3031	3492	2347	210	165	240	185
2/0 AWG	6.60/260	2.80/110	62.2	2.45	5117	3439	3867	2599	235	185	275	215
3/0 AWG	6.60/260	2.80/110	65.5	2.58	5874	3948	4291	2884	270	210	315	245
4/0 AWG	6.60/260	3.56/140	68.6	2.7	6698	4502	4707	3164	305	240	360	285
250 MCM	6.60/260	3.56/140	72.9	2.87	7674	5158	5329	3582	335	265	400	315
350 MCM	6.60/260	3.56/140	78.5	3.09	9547	6417	6246	4198	400	315	490	385
500 MCM	6.60/260	3.56/140	85.1	3.35	12216	8211	7509	5047	485	385	600	475
750 MCM	6.60/260	3.56/140	96	3.78	16854	11328	9645	6483	585	475	745	600
1000 MCM	6.60/260	3.56/140	104.4	4.11	21054	14151	11611	7804	660	545	860	705
					25kV 13	3% to ICEA S	tandard
1/0 AWG	8.76/345	3.56/140	72.1	2.84	5813	3907	4791	3220	210	165	240	185
2/0 AWG	8.76/345	3.56/140	74.2	2.92	6454	4338	5207	3500	235	185	275	215
3/0 AWG	8.76/345	3.56/140	76.7	3.02	7167	4817	5584	3753	270	210	315	245
4/0 AWG	8.76/345	3.56/140	79.8	3.14	8042	5405	6052	4068	305	240	360	285
250 MCM	8.76/345	3.56/140	82.6	3.25	8824	5931	6479	4355	335	265	400	315
350 MCM	8.76/345	3.56/140	87.9	3.46	10770	7239	7469	5020	400	315	490	385
500 MCM	8.76/345	3.56/140	95.5	3.76	13658	9180	8951	6016	485	385	600	475

Medium voltage power cable-1.8-3 kV RG7H1R RG7H1OR Medium

1.8-3 kV RG7H1R RG7H1OR Medium
Formation	Approx conductor Ø	Average insulation thickness	Max external Ø	Approx cable weight	Current rating A
Formation	Approx conductor Ø	Average insulation thickness	Max external Ø	Approx cable weight		in air	buried*
n°xmm2	mm	mm	mm	kg/km	trefoil	flat	trefoil	flat
1×10	4,0	2,0	14,0	290	87	111	99	104
1×16	4,8	2,0	15,0	350	114	145	126	133
1×25	6,0	2,0	16,0	450	149	190	162	171
1×35	7,0	2,0	17,0	550	181	230	193	204
1×50	8,1	2,0	18,5	670	219	276	227	241
1×70	9,7	2,0	20,5	880	275	345	278	294
1×95	11,4	2,0	22,0	1100	339	422	332	351
1×120	12,9	2,0	24,5	1400	393	487	377	399
1×150	14,3	2,0	26,0	1650	446	550	421	445
1×185	16,0	2,0	27,5	2000	516	635	477	500
1×240	18,3	2,0	30,0	2550	617	745	550	580
1×300	21,0	2,0	32,5	3150	709	855	621	650
1×400	23,2	2,0	35,5	3950	824	990	702	735
1×500	26,1	2,2	40,0	5050	954	1140	790	830
1×630	30,3	2.4	44	6300	1102	1300	885	93
