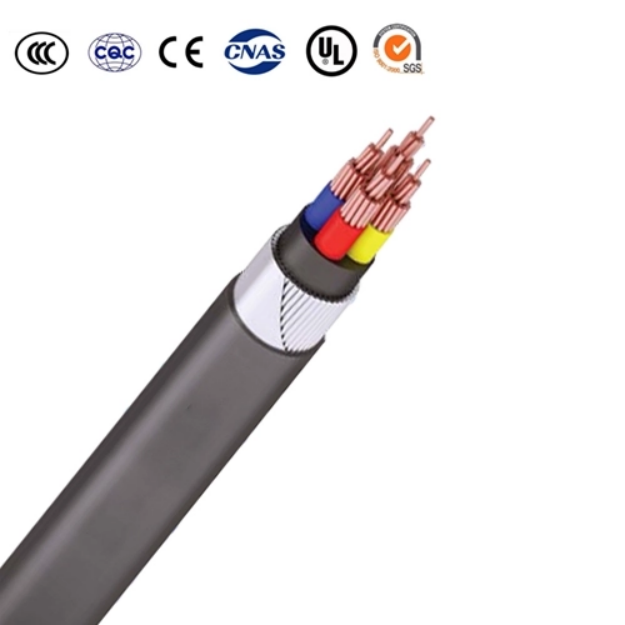

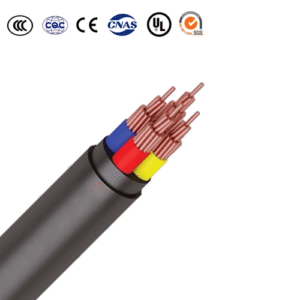

PVC Insulated Armored Power Cable
PVC armored cable for tough and underground installations.
Steel armored protection with reliable PVC insulation.
Ideal for industrial, commercial, and outdoor power systems.
Durable low-voltage cable with flame-retardant sheath.
Factory-direct armored cables, IEC/BS certified.
Application
protection with reliable electrical performance, designed for demanding low-voltage power distribution. The cable features high-purity copper or aluminum conductors insulated with durable PVC, known for its excellent flame retardancy, moisture resistance, and chemical stability.
The standout feature is the steel wire armor (SWA) for single-core or steel tape armor (STA) for multi-core cables, providing superior protection against mechanical impact, crushing forces, rodents, and external stresses. This armor layer allows direct burial and outdoor installation without additional conduit, making it ideal for harsh environments such as industrial sites, underground networks, and infrastructure projects.
PVC insulation enables continuous operation at 70°C and withstands short-circuit temperatures up to 160°C, ensuring thermal stability and safety. The cable’s outer sheath also offers UV resistance and good abrasion resistance, extending service life in exposed conditions.
Specifications
| Aspect | Details & Applications |
| Conductor Material | Bare copper or aluminum, solid or stranded (IEC 60228 Class 1 or 2) |
| Insulation Material | PVC (Polyvinyl Chloride) – reliable insulation with flame retardant and good mechanical properties |
| Armour Type | Steel Wire Armour (SWA) for mechanical protection and enhanced durability |
| Cable Type | Armoured – suitable for direct burial, outdoor, and industrial environments |
| Voltage Rating | Typically 0.6/1 kV, 3.6/6 kV for low and medium voltage power applications |
| Operating Temperature | Continuous up to 70°C; short circuit withstand up to 160°C |
| Sheath Material | PVC outer sheath – UV resistant, flame retardant, protects against moisture and mechanical damage |
| Standards | IEC 60502-1, BS 5467, BS 6724, VDE 0276, other regional standards |
| Electrical Properties | Stable insulation resistance and reliable power transmission |
| Mechanical Properties | High resistance to impact, crushing, abrasion, and mechanical stress |
| Chemical Resistance | Resistant to moisture, oils, acids, alkalis, and many chemicals |
| Typical Applications | – Power distribution in industrial plants, commercial buildings, and utility networks |
| – Suitable for direct burial, underground ducting, cable trays, and harsh outdoor conditions |
Parameter
PVC insulated armored power cable-Single core( aluminum wire armoured)
| Single core( aluminum wire armoured) | |||||||
| NOMINAL AREA | APPROXONDUCTOR DIAMETER | NOMINAL INSULATION THICKNESS | NOMINAL BEDDINGTHICKNESS | NOMINAL ALUM WIRE DIA. | NOMINAL SHEATH THICKNESS | APPROX.OVERALL DIAMETER | APPROX.WEIGHT |
| MM2 | MM | MM | MM | MM | MM | MM | KG/KM |
| 1×10 | 4 | 1 | 1 | 0.8 | 1.8 | 14 | 300 |
| 1×16 | 5 | 1 | 1 | 0.8 | 1.8 | 15 | 375 |
| 1×25 | 6.3 | 1.2 | 1 | 0.8 | 1.8 | 16 | 500 |
| 1×35 | 7.4 | 1.2 | 1 | 0.8 | 1.8 | 18 | 625 |
| 1×50 | 8.8 | 1.4 | 1 | 1.25 | 1.8 | 20 | 835 |
| 1×70 | 10.6 | 1.4 | 1 | 1.25 | 1.8 | 22 | 1075 |
| 1×95 | 12.4 | 1.6 | 1 | 1.25 | 1.8 | 24 | 1385 |
| 1×120 | 14 | 1.6 | 1 | 1.6 | 1.8 | 26 | 1700 |
| 1×150 | 15.5 | 1.8 | 1 | 1.6 | 1.8 | 28 | 2025 |
| 1×185 | 17.4 | 2 | 1 | 1.6 | 1.8 | 31 | 2450 |
| 1×240 | 20.3 | 2.2 | 1 | 1.6 | 1.9 | 34 | 3100 |
| 1×300 | 22.7 | 2.4 | 1 | 2 | 2 | 38 | 3900 |
| 1×400 | 25.4 | 2.6 | 1.2 | 2 | 2.1 | 42 | 4875 |
| 1×500 | 28.8 | 2.8 | 1.2 | 2 | 2.2 | 45 | 6050 |
| 1×630 | 30.4 | 2.8 | 1.2 | 2 | 2.4 | 50 | 7625 |
PVC insulated armored power cable-Two cores(Galvanized steel wire armoured)
| Two cores(Galvanized steel wire armoured) | |||||||
| NOMINAL AREA | APPROXONDUCTOR DIAMETER | NOMINAL INSULATION THICKNESS | NOMINAL BEDDINGTHICKNESS | NOMINAL STEEL WIRE DIA. | NOMINAL SHEATH THICKNESS | APPROX.OVERALL DIAMETER | APPROX.WEIGHT |
| MM2 | MM | MM | MM | MM | MM | MM | KG/KM |
| 2×2.5 | 2 | 0.8 | 1 | 0.8 | 1.8 | 15 | 425 |
| 2×4 | 2.6 | 1 | 1 | 0.8 | 1.8 | 17 | 525 |
| 2×6 | 3.1 | 1 | 1 | 1.25 | 1.8 | 19 | 775 |
| 2×10 | 4 | 1 | 1 | 1.25 | 1.8 | 20 | 825 |
| 2×16 | 5 | 1 | 1 | 1.25 | 1.8 | 21 | 950 |
| 2×25 | 6.3 | 1 | 1 | 1.25 | 1.8 | 23 | 1150 |
| 2×35 | 7.4 | 1.2 | 1 | 1.6 | 1.8 | 27 | 1700 |
| 2×2.5 | 2 | 1.2 | 1 | 1.6 | 1.8 | 29 | 2050 |
PVC insulated armored power cable-Three cores(Galvanized steel wire armoured)
| Three cores(Galvanized steel wire armoured) | |||||||
| NOMINAL AREA | APPROXONDUCTOR DIAMETER | NOMINAL INSULATION THICKNESS | NOMINAL BEDDINGTHICKNESS | NOMINAL STEEL WIRE DIA. | NOMINAL SHEATH THICKNESS | APPROX.OVERALL DIAMETER | APPROX.WEIGHT |
| MM2 | MM | MM | MM | MM | MM | MM | KG/KM |
| 3×2.5 rm | 2 | 0.8 | 1.2 | 0.8 | 1.8 | 16 | 465 |
| 3×4 re | 2.3 | 1 | 1.2 | 1.25 | 1.8 | 18 | 685 |
| 3×4 rm | 2.6 | 1 | 1.2 | 1.25 | 1.8 | 19 | 725 |
| 3×6 re | 2.8 | 1 | 1.2 | 1.25 | 1.8 | 19 | 800 |
| 3×6 rm | 3.1 | 1 | 1.2 | 1.25 | 1.8 | 20 | 850 |
| 3×10 re | 3.6 | 1 | 1.2 | 1.25 | 1.8 | 21 | 1000 |
| 3×10 rm | 4 | 1 | 1.2 | 1.25 | 1.8 | 22 | 1050 |
| 3×16 rm | 5 | 1 | 1.2 | 1.25 | 1.8 | 24 | 1350 |
| 3×25 rm | 6.3 | 1.2 | 1.2 | 1.6 | 1.8 | 29 | 1975 |
| 3×35 rm | 7.4 | 1.2 | 1.2 | 1.6 | 1.8 | 31 | 2300 |
| 3×50 sm | – | 1.4 | 1.2 | 1.6 | 2 | 32 | 2675 |
| 3×70 sm | – | 1.4 | 1.2 | 2 | 2.1 | 36 | 3700 |
| 3×95 sm | – | 1.6 | 1.2 | 2 | 2.2 | 41 | 4750 |
| 3×120 sm | – | 1.6 | 1.2 | 2 | 2.3 | 44 | 5575 |
| 3×150 sm | – | 1.8 | 1.4 | 2.5 | 2.5 | 49 | 7150 |
| 3×185 sm | – | 2 | 1.4 | 2.5 | 2.7 | 53 | 8550 |
| 3×240 sm | – | 2.2 | 1.5 | 2.5 | 2.9 | 59 | 10700 |
| 3×300 sm | – | 2.4 | 1.6 | 2.5 | 3.1 | 65 | 12925 |
| 3×400 sm | – | 2.6 | 1.6 | 3.15 | 3.4 | 74 | 16900 |
| 3×500 sm | – | 2.8 | 1.8 | 3.15 | 3.6 | 81 | 20650 |
PVC insulated armored power cable-Three cores+1(Galvanized steel wire armoured)
| Three cores+1(Galvanized steel wire armoured) | ||||||||
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation thickness | Nominal Inner Covering thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) | ||
| mm^2 | mm | mm | mm | mm | mm | mm | mm | mm |
| 3×10/6 | 3.6 | 2.8 | 1 | 1 | 1 | 1.25 | 1.8 | 21.9 |
| 3×16/10 | 4.5 | 3.6 | 1 | 1 | 1 | 1.6 | 1.8 | 24.2 |
| 3×25/16 | 5.6 | 4.5 | 1.2 | 1 | 1 | 1.6 | 1.8 | 27.9 |
| 3×35/16 | 6.7 | 4.5 | 1.2 | 1 | 1 | 1.6 | 1.9 | 30.8 |
| 3×50/25 | 8 | 5.6 | 1.4 | 1.2 | 1 | 2 | 2 | 36.4 |
| 3×70/35 | 9.4 | 6.7 | 1.4 | 1.2 | 1.2 | 2 | 2.1 | 40.1 |
| 3×95/50 | 11 | 8 | 1.6 | 1.4 | 1.2 | 2.5 | 2.3 | 46.3 |
| 3×120/70 | 12.4 | 9.4 | 1.6 | 1.4 | 1.4 | 2.5 | 2.4 | 50.3 |
| 3×150/70 | 13.8 | 9.4 | 1.8 | 1.4 | 1.4 | 2.5 | 2.6 | 55 |
| 3×185/95 | 15.3 | 11 | 2 | 1.6 | 1.4 | 2.5 | 2.7 | 60.3 |
| 3×240/120 | 17.5 | 12.4 | 2.2 | 1.6 | 1.6 | 2.5 | 2.9 | 67 |
| 3×300/150 | 19.5 | 13.8 | 2.4 | 1.8 | 1.6 | 3.15 | 3.1 | 74.6 |
| 3×400/185 | 22.6 | 15.3 | 2.6 | 2 | 1.8 | 3.15 | 3.4 | 84.1 |
| 3×500/240 | 25.2 | 17.5 | 2.8 | 2.2 | 2 | 3.15 | 3.7 | 91.8 |
PVC insulated armored power cable-Four cores(Galvanized steel wire armoured)
| Four cores(Galvanized steel wire armoured) | |||||||
| NOMINAL AREA | APPROXONDUCTOR DIAMETER | NOMINAL INSULATION THICKNESS | NOMINAL BEDDINGTHICKNESS | NOMINAL STEEL WIRE DIA. | NOMINAL SHEATH THICKNESS | APPROX.OVERALL DIAMETER | APPROX.WEIGHT |
| MM2 | MM | MM | MM | MM | MM | MM | KG/KM |
| 4×4 re | 2.3 | 1 | 1 | 1.25 | 1.8 | 19 | 790 |
| 4×4 rm | 2.6 | 1 | 1 | 1.25 | 1.8 | 20 | 825 |
| 4×6 re | 2.8 | 1 | 1 | 1.25 | 1.8 | 21 | 925 |
| 4×6 rm | 3.1 | 1 | 1 | 1.25 | 1.8 | 21 | 975 |
| 4×10 re | 3.6 | 1 | 1 | 1.25 | 1.8 | 23 | 1175 |
| 4×10 rm | 4 | 1 | 1 | 1.25 | 1.8 | 24 | 1250 |
| 4×16 rm | 5 | 1 | 1 | 1.6 | 1.8 | 27 | 1750 |
| 4×25 rm | 6.3 | 1.2 | 1 | 1.6 | 1.8 | 31 | 2375 |
| 4×35 sm | – | 1.2 | 1 | 1.6 | 1.9 | 31 | 2600 |
| 4×50 sm | – | 1.4 | 1 | 2 | 2.1 | 37 | 3625 |
| 4×70 sm | – | 1.4 | 1.2 | 2 | 2.2 | 40 | 4575 |
| 4×95 sm | – | 1.6 | 1.2 | 2.5 | 2.4 | 46 | 6350 |
| 4×120 sm | – | 1.6 | 1.4 | 2.5 | 2.5 | 50 | 7525 |
| 4×150 sm | – | 1.8 | 1.4 | 2.5 | 2.7 | 55 | 8950 |
| 4×185 sm | – | 2 | 1.4 | 2.5 | 2.9 | 60 | 10650 |
| 4×240 sm | – | 2.2 | 1.6 | 2.5 | 3.1 | 66 | 13575 |
| 4×300 sm | – | 2.4 | 1.6 | 2.5 | 3.3 | 73 | 16425 |
| 4×400 sm | – | 2.6 | 1.8 | 3.15 | 3.6 | 83 | 21500 |
| 4×500 sm | – | 2.8 | 2 | 3.15 | 3.9 | 91 | 26500 |
